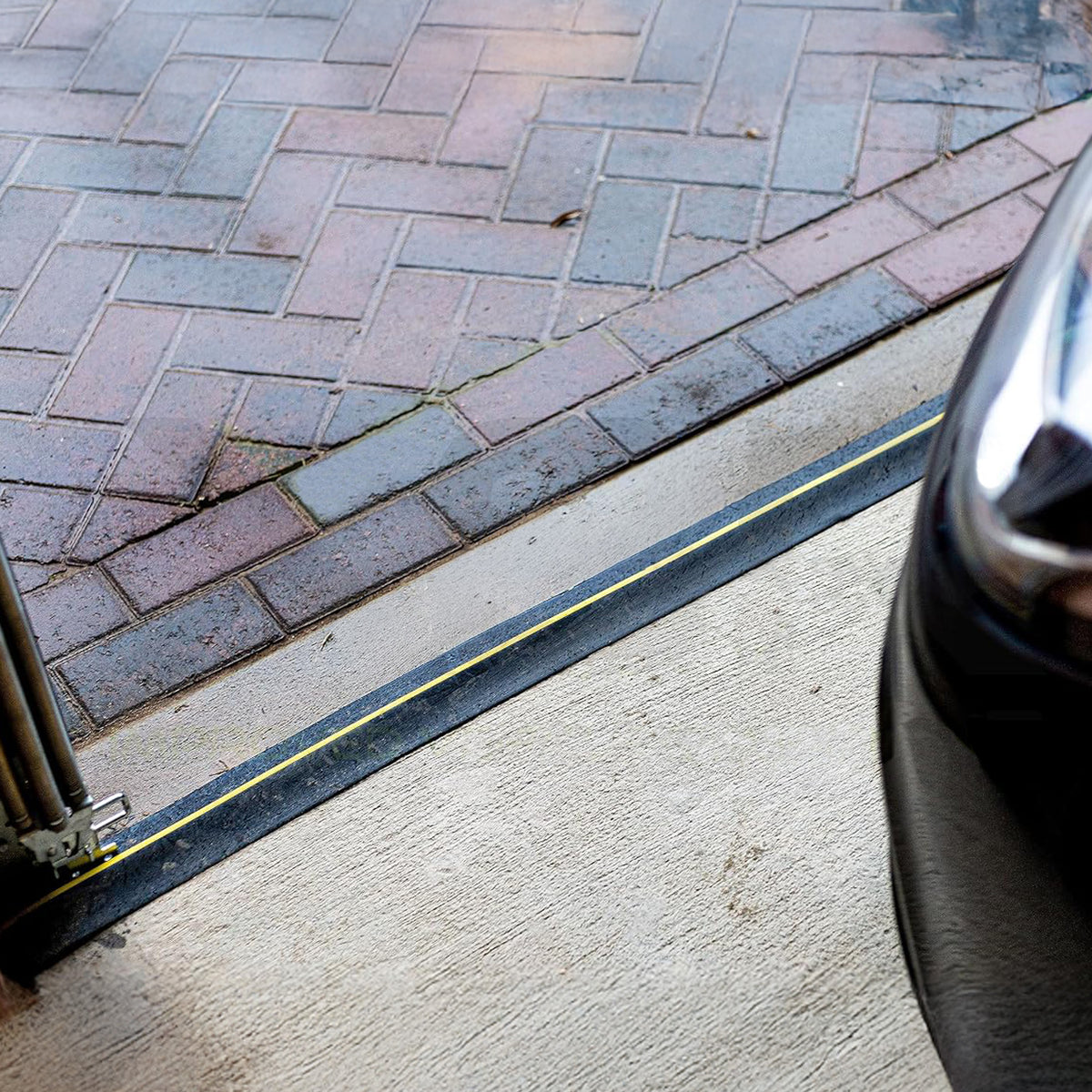

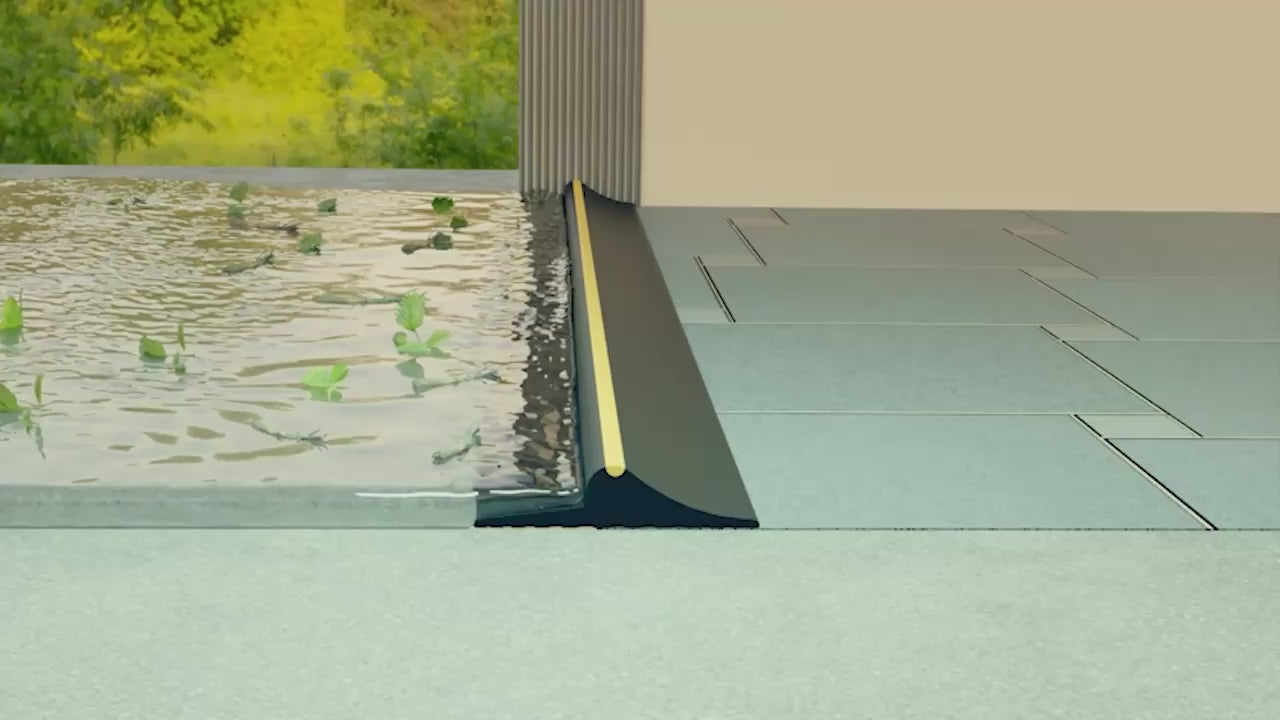

Keep water, leaves and pests out of your garage
A heavy duty threshold seal that bonds to your floor and closes the gap under your door.

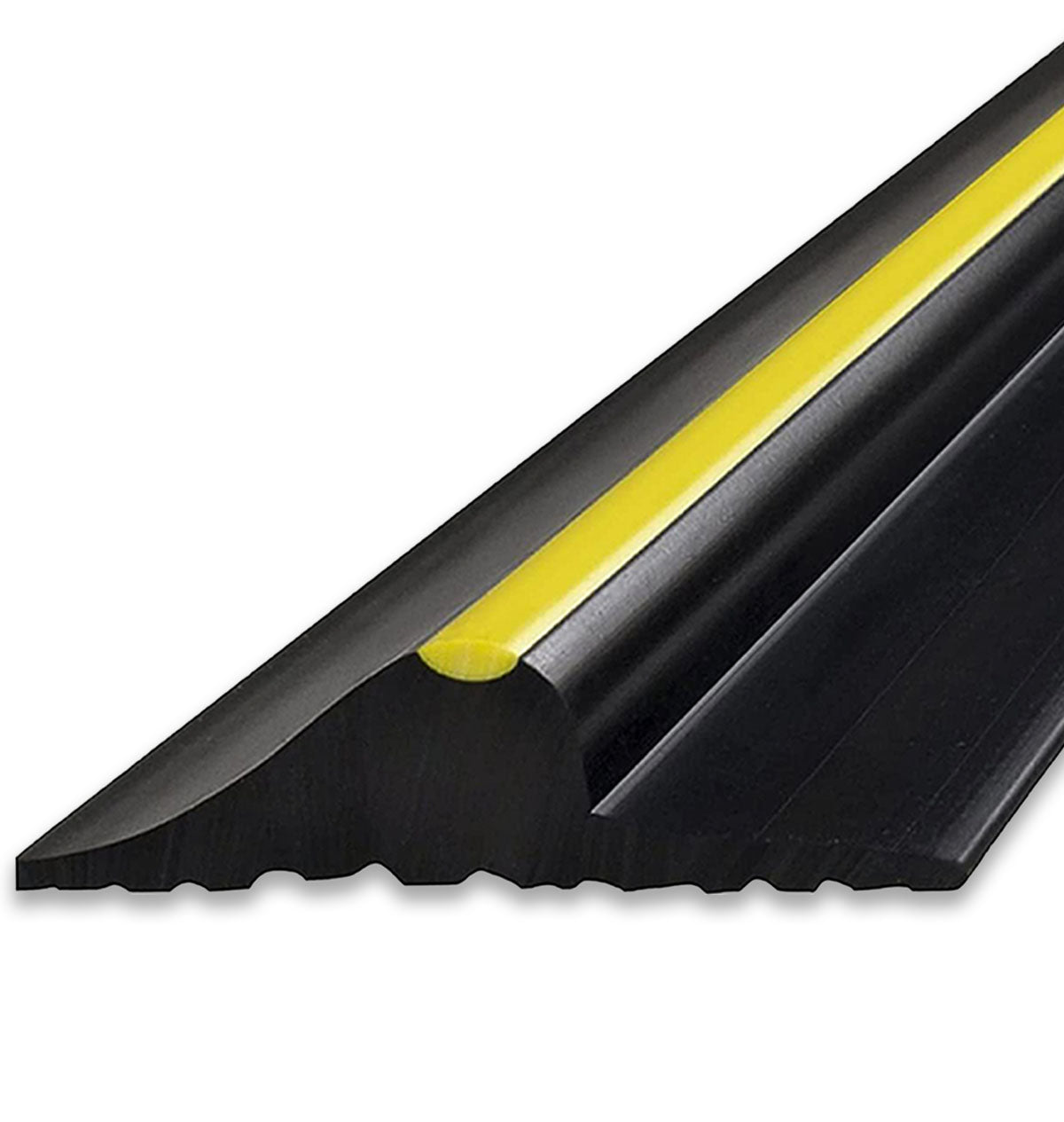

Durable Design
Built to last, operating between −40°C to +100°C
Easy Installation
Comprehensive fitting guide included!

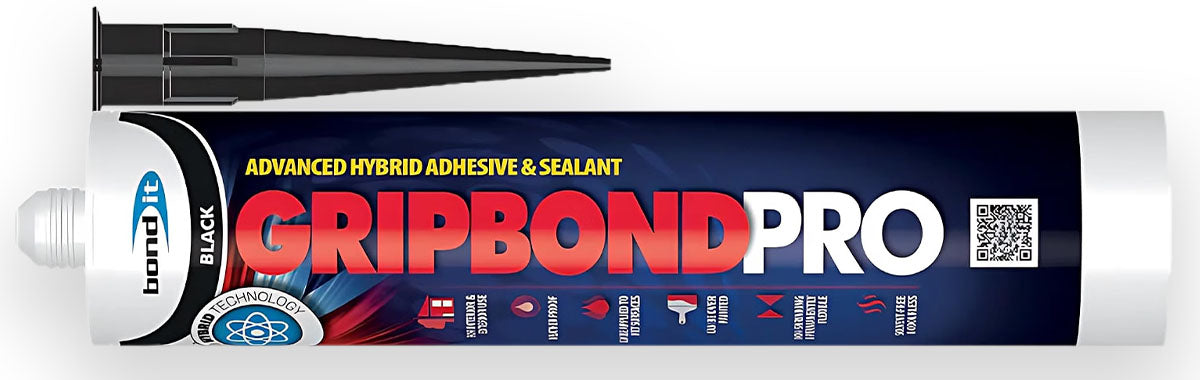

Sealant Included!

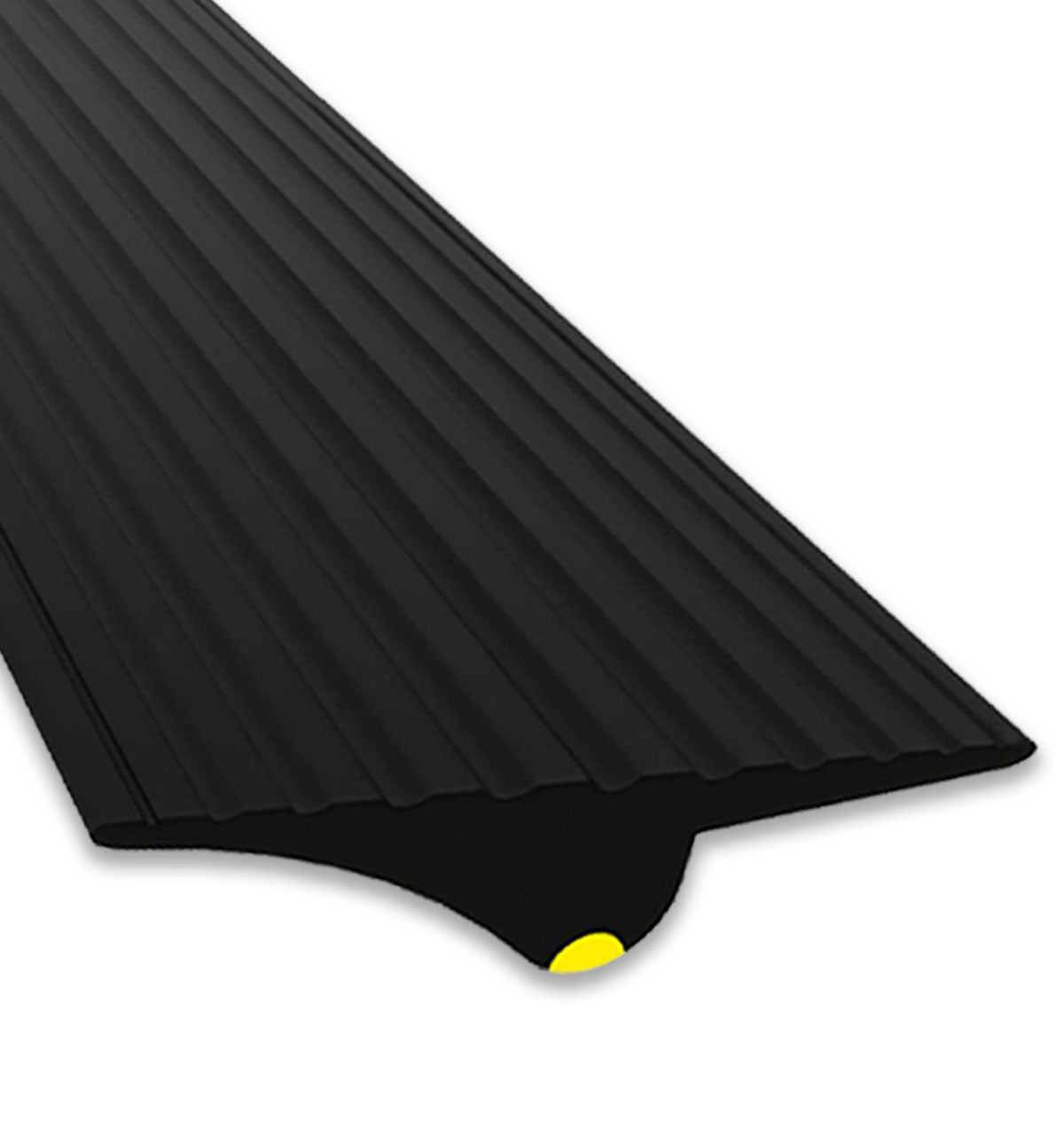

Ribbed Design
Varying groves allow for the strongest bond
UK Business
All orders and customer service handled in the UK
7ft to 30ft
Choose the length that fits your door
Specifications
Engineered to seal.

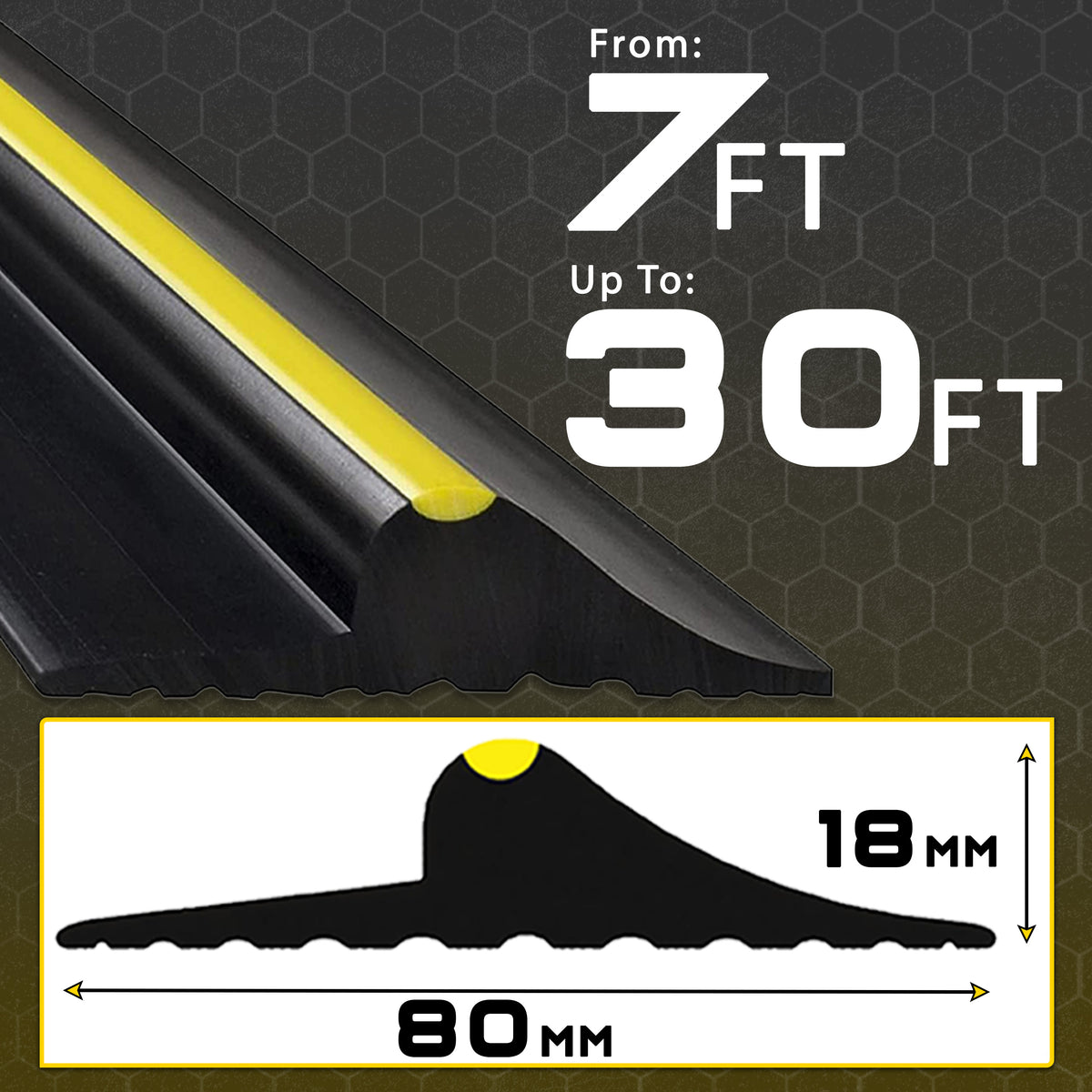

A heavy duty 80mm profile that stands 18mm tall, sealing the gap under your door while staying low enough to drive over.
16 lengths to fit single and double doors
Seal stays flexible in frost and summer heat
Cure time before you drive over it

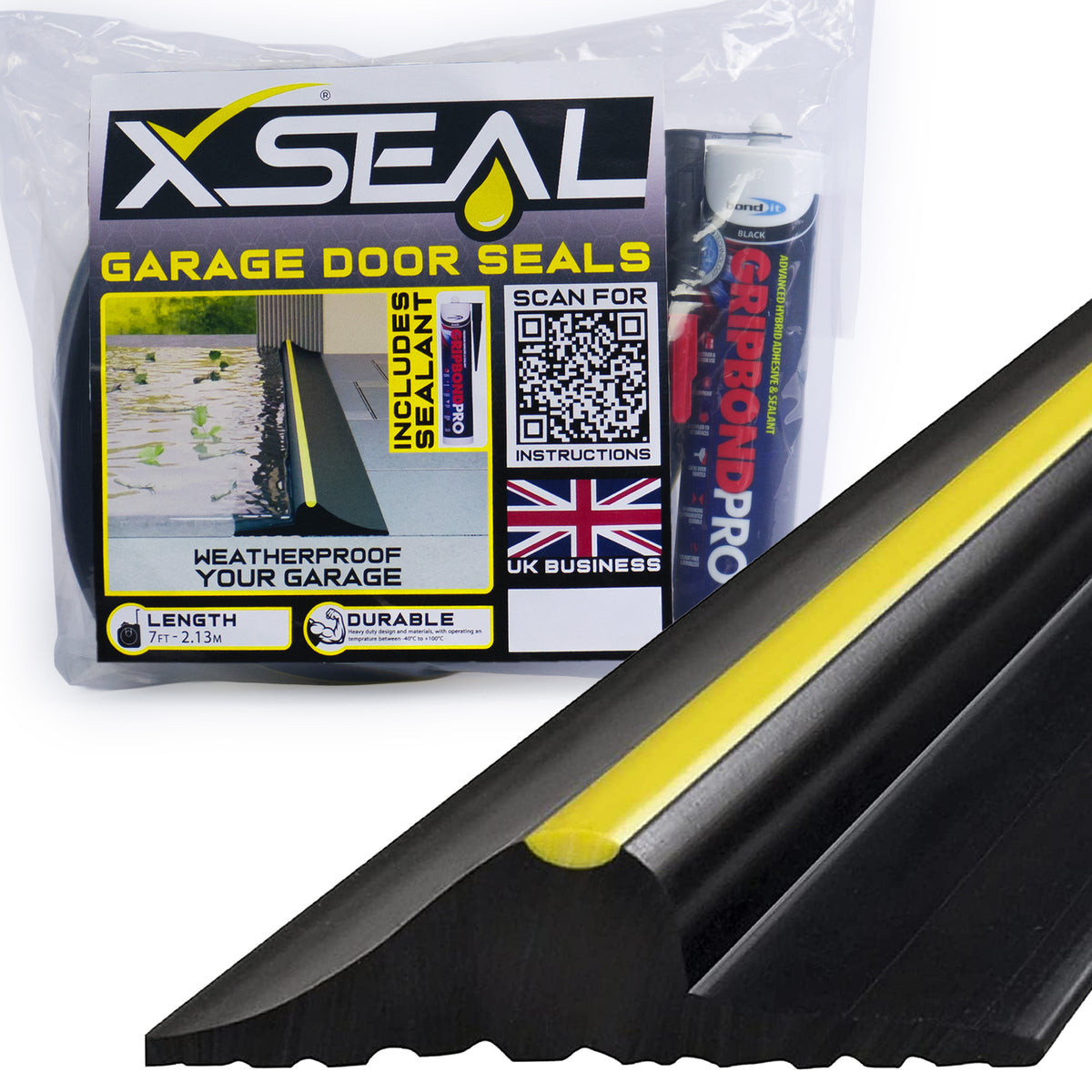

Hybrid adhesive included in every kit
Full specifications
| Profile | 80mm wide x 18mm high |
|---|---|
| Lengths | 7ft to 30ft (16 sizes), cut to fit with a hacksaw |
| Material | Flexible, UV stable, odour free rubber |
| Colour | Black with yellow trip warning line |
| Seal temperature range | −40°C to +100°C |
| Adhesive included | Hybrid adhesive and sealant: 1 tube up to 14ft, 2 tubes from 15ft |
| Adhesive application temperature | 5°C to 40°C |
| Adhesive resistance once cured | −30°C to +95°C |
| Cure time | 24 hours before driving over |
| Suitable doors | Up and over, sectional, roller shutter and side hinged, manual or automatic |
Featured product
Find your size
Measure the width of your garage door opening and enter it below. We'll pick the right length for you.
We add 4cm each side so the seal can be cut in neatly around the door frame.
Pickup currently not available
Compatibility
Fits every garage door.

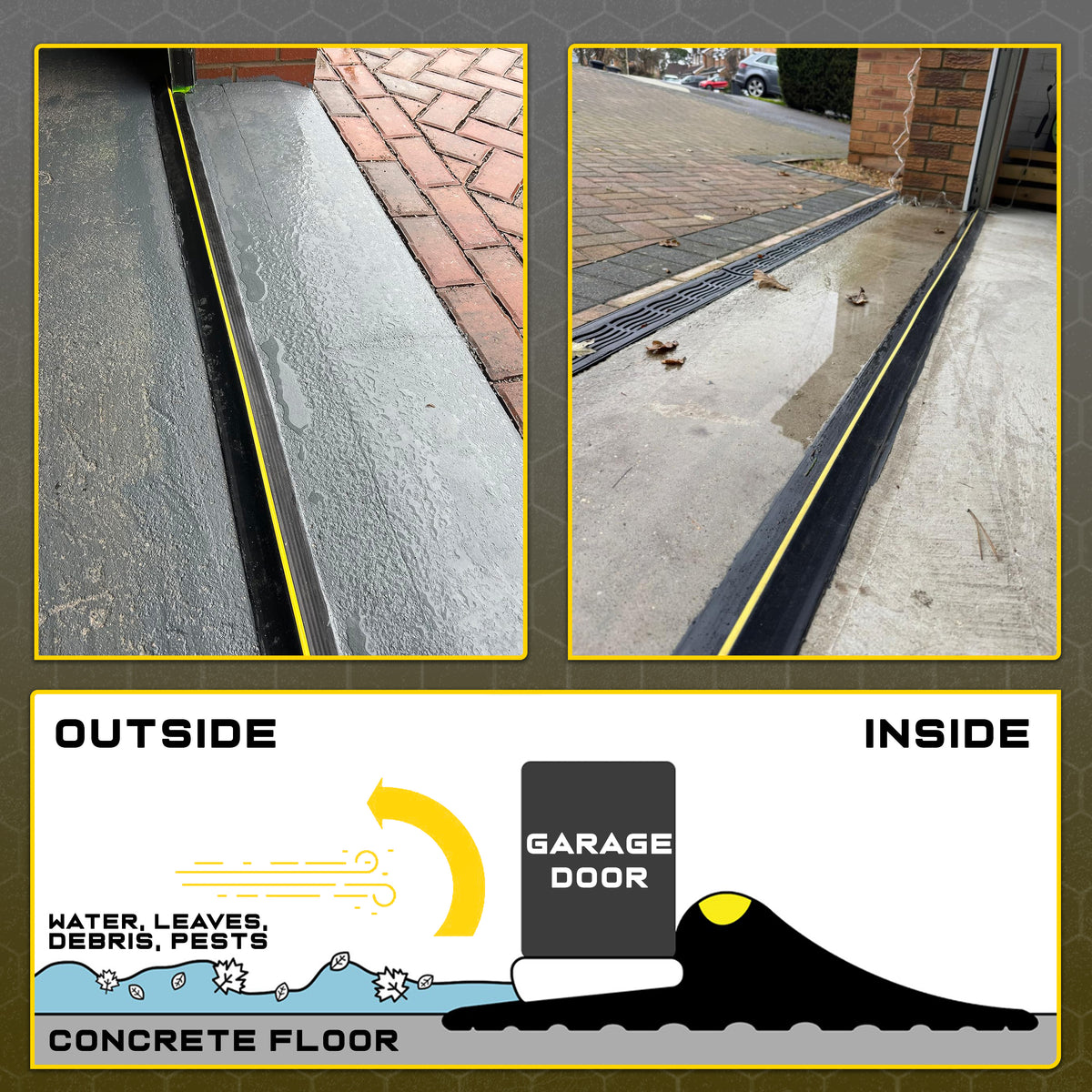

Whatever door you have, it closes down onto XSEAL. Manual or automatic, the raised threshold seals the gap underneath.

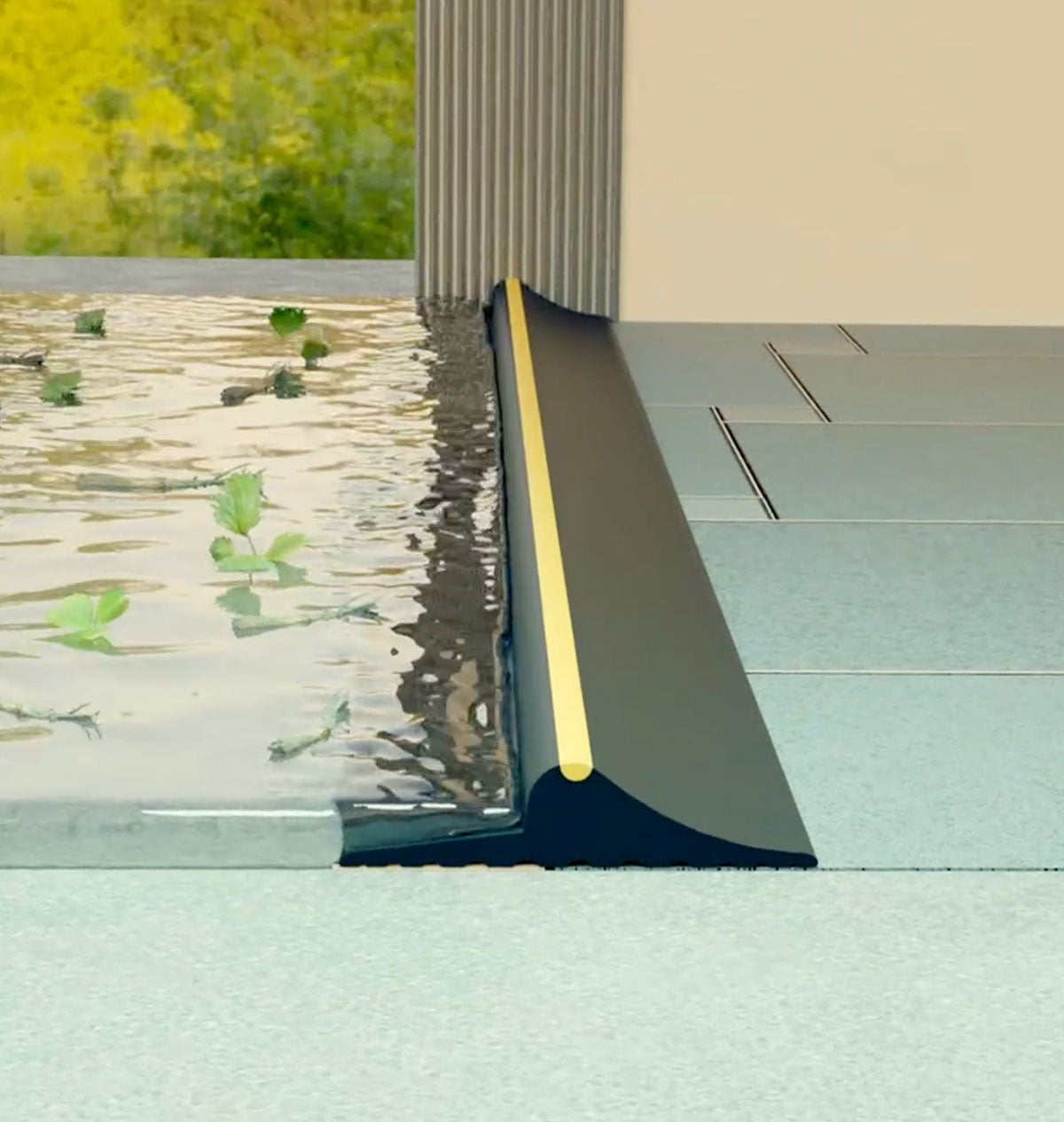

The door swings down and comes to rest on the raised threshold, closing the gap along its full width.
The panels roll down the track and land on the seal, so rain and draughts can't creep underneath.
The curtain unrolls straight down onto the threshold, sealing uneven floors a bottom rubber alone can't.
The doors swing shut against the threshold, which forms a water barrier right across the opening.
Endless possibilities
More than just a garage.
Seal the gap under the door and keep the rain, leaves and draughts out. Now the garage is a space you can actually use.
Keep puddles and draughts off the floor so your kit stays dry and you can train all year round.
Cut the draughts under the door and the garage becomes a quiet, comfortable place to work.
Keep rainwater away from your tools, timber and power leads.
And if it's just for the car, it keeps rain, leaves and debris out where they belong.
No fuss fitting
Easy Installation
XSEAL should be fitted between 10°C and 25°C, View our Full Fitting Guide to ensure you get the best seal for your garage!

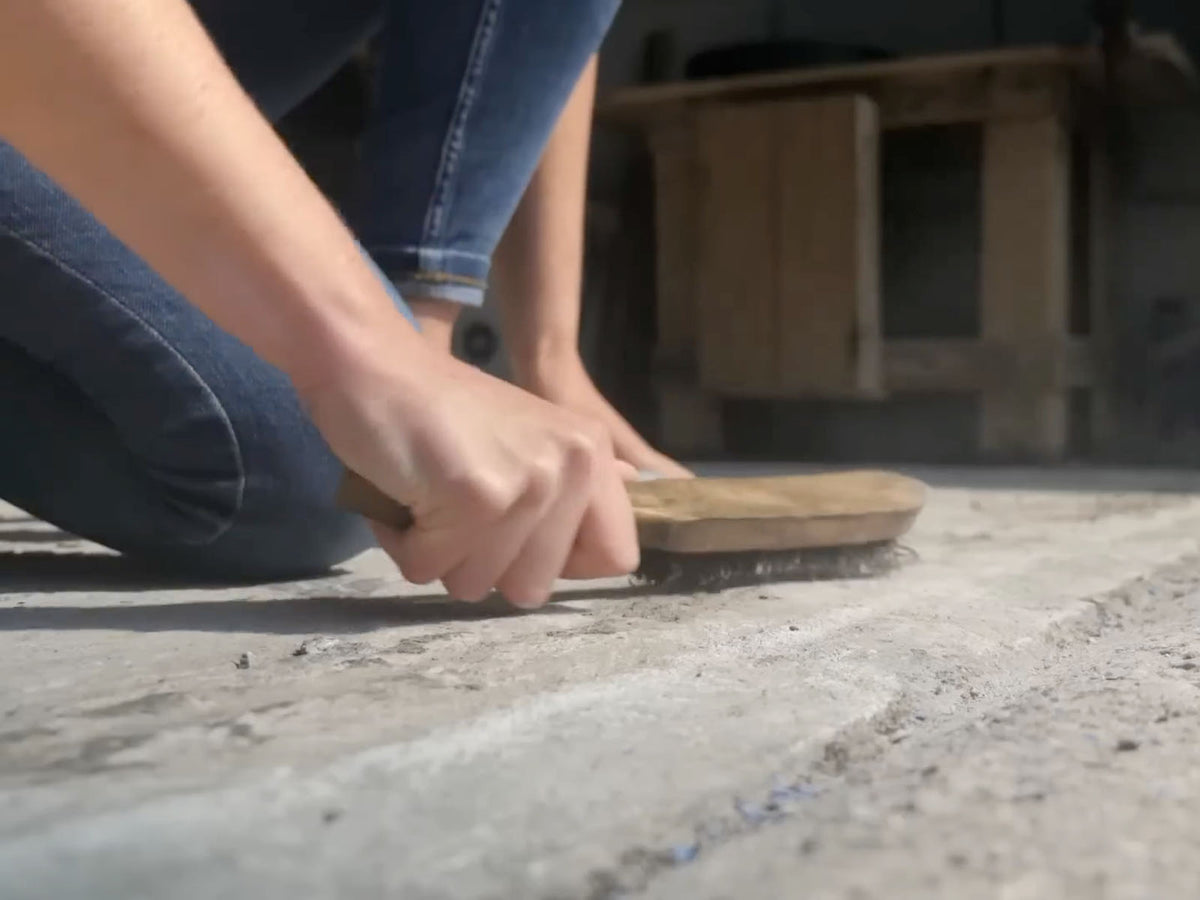

Step 1
-

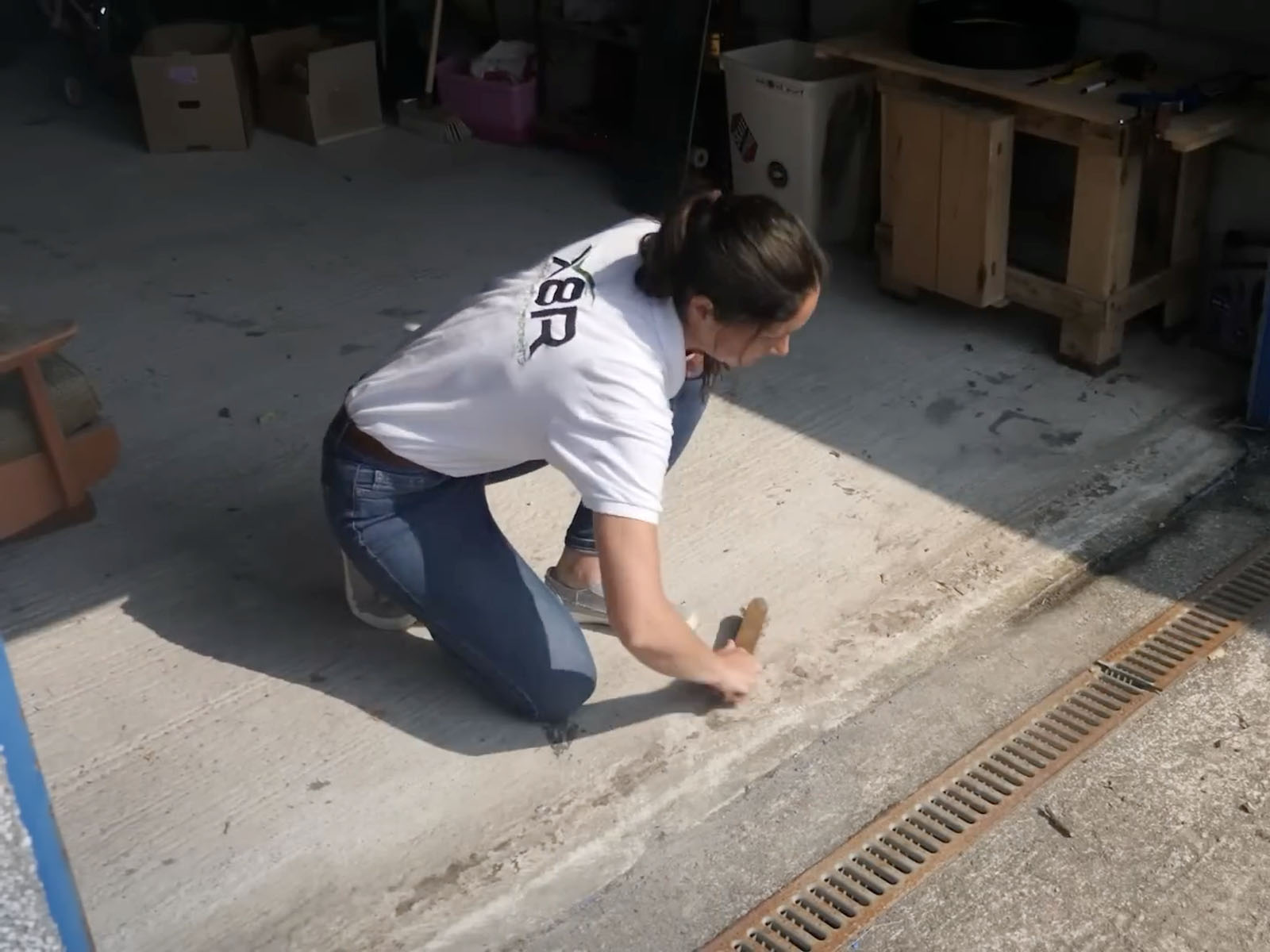

Clean The Fitting Area
clear the floor of oil and residue and go over it with a wire brush to give the adhesive the best bond.
Tip: View our full fitting guide for the best seal!
-

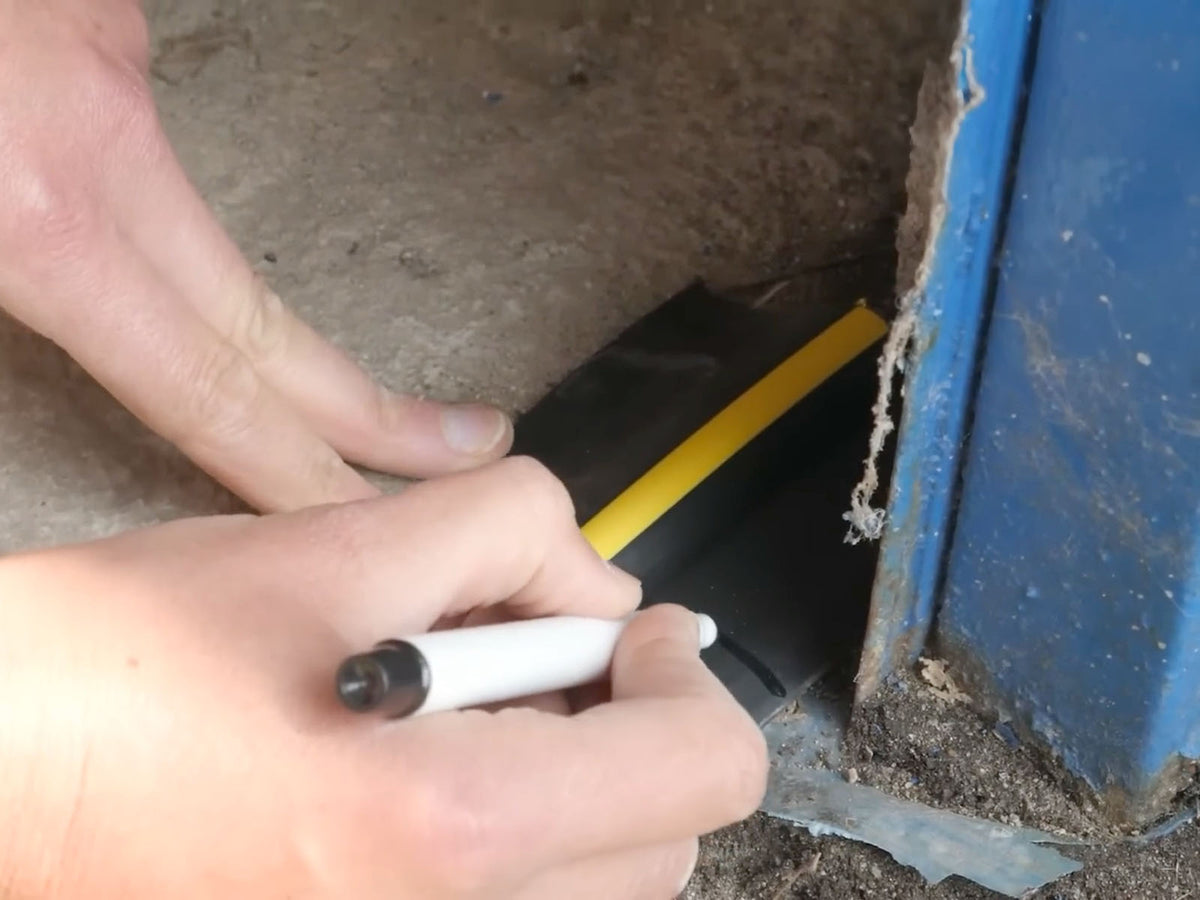

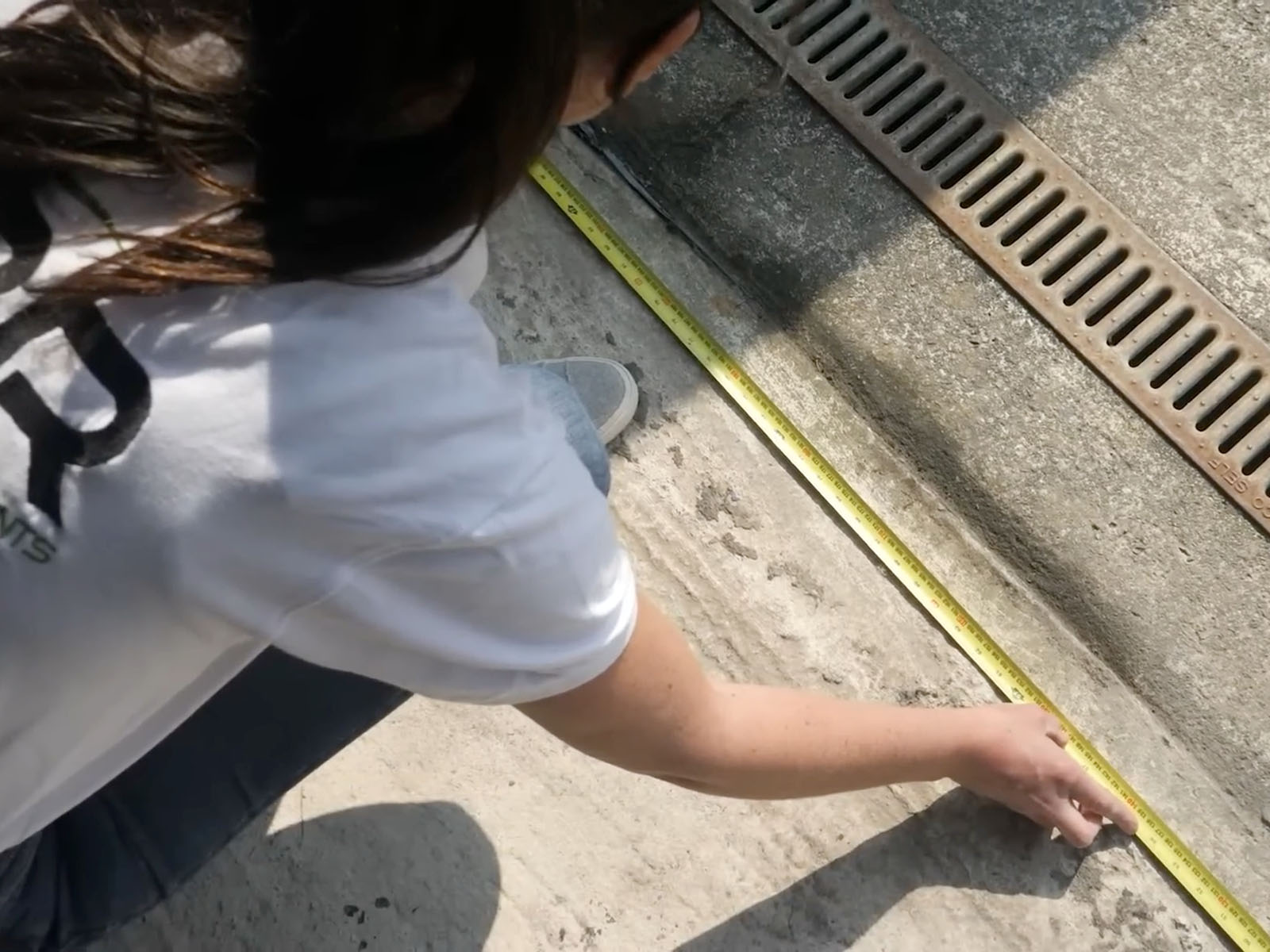

Measure & Mark
Measure the opening and allow roughly 4cm extra each side to cut in around the frame and mechanism. Lay the seal and mark cut points around the door frame.
-

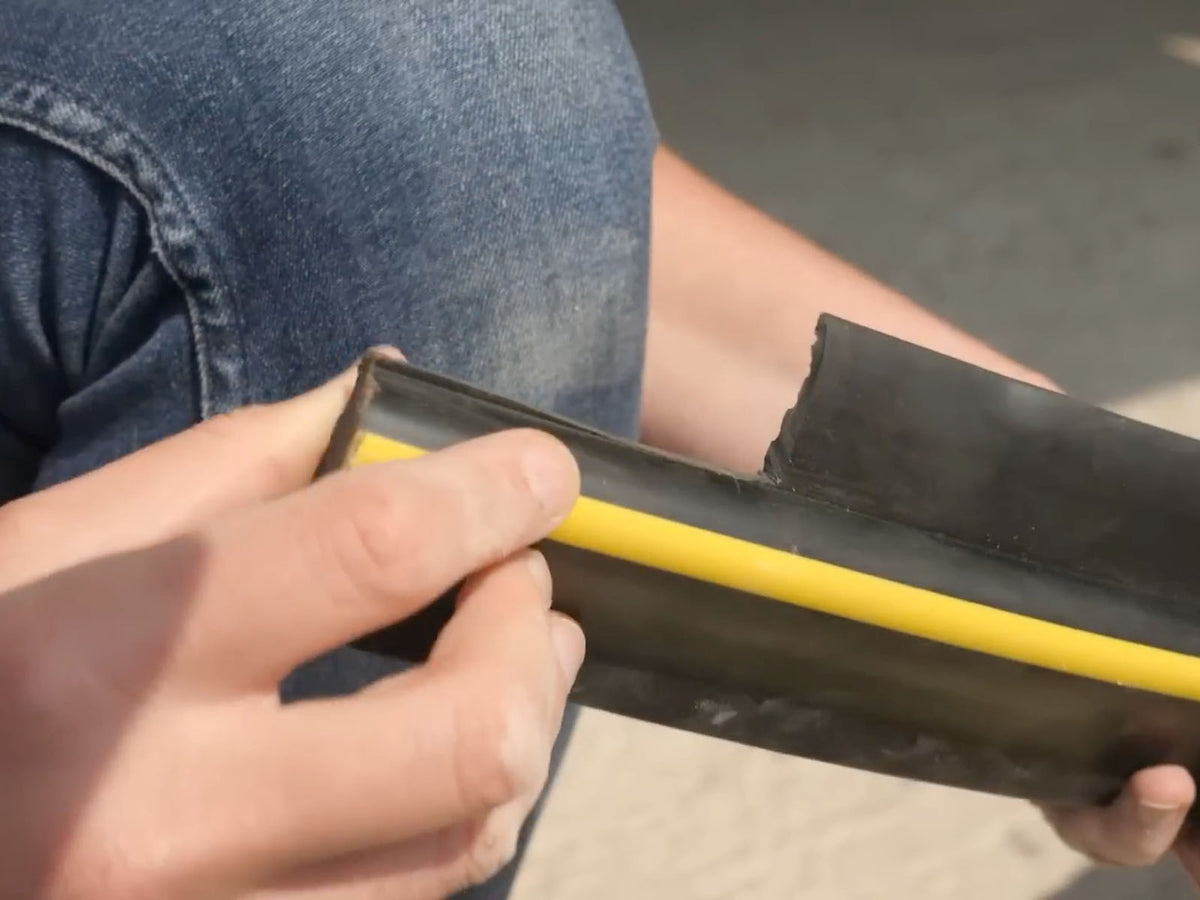

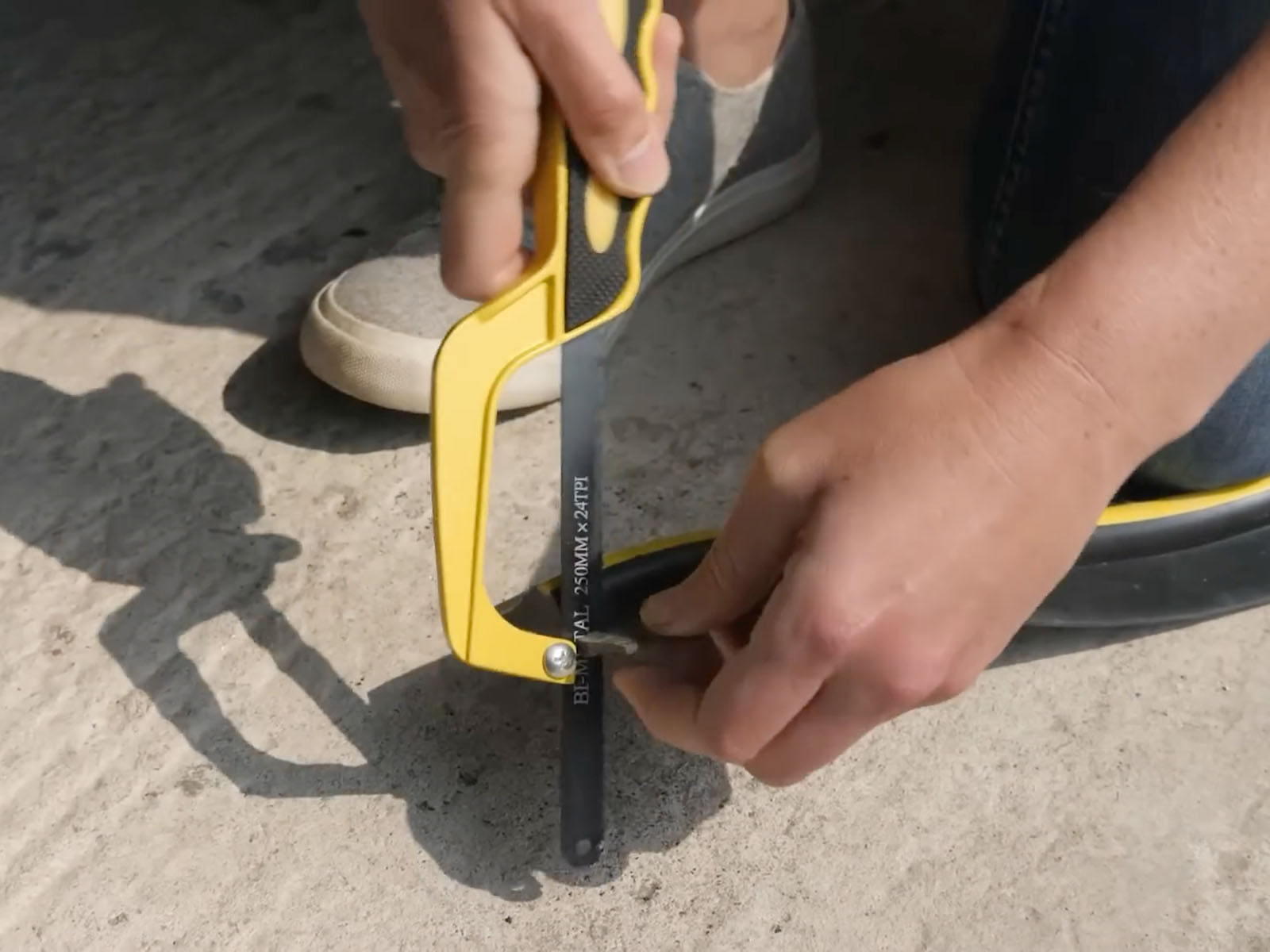

Cut The Seal To Size
Cut the seal to size with a junior hacksaw. Cut out notches from the markings so the seal can press up tightly to the doorframe
-

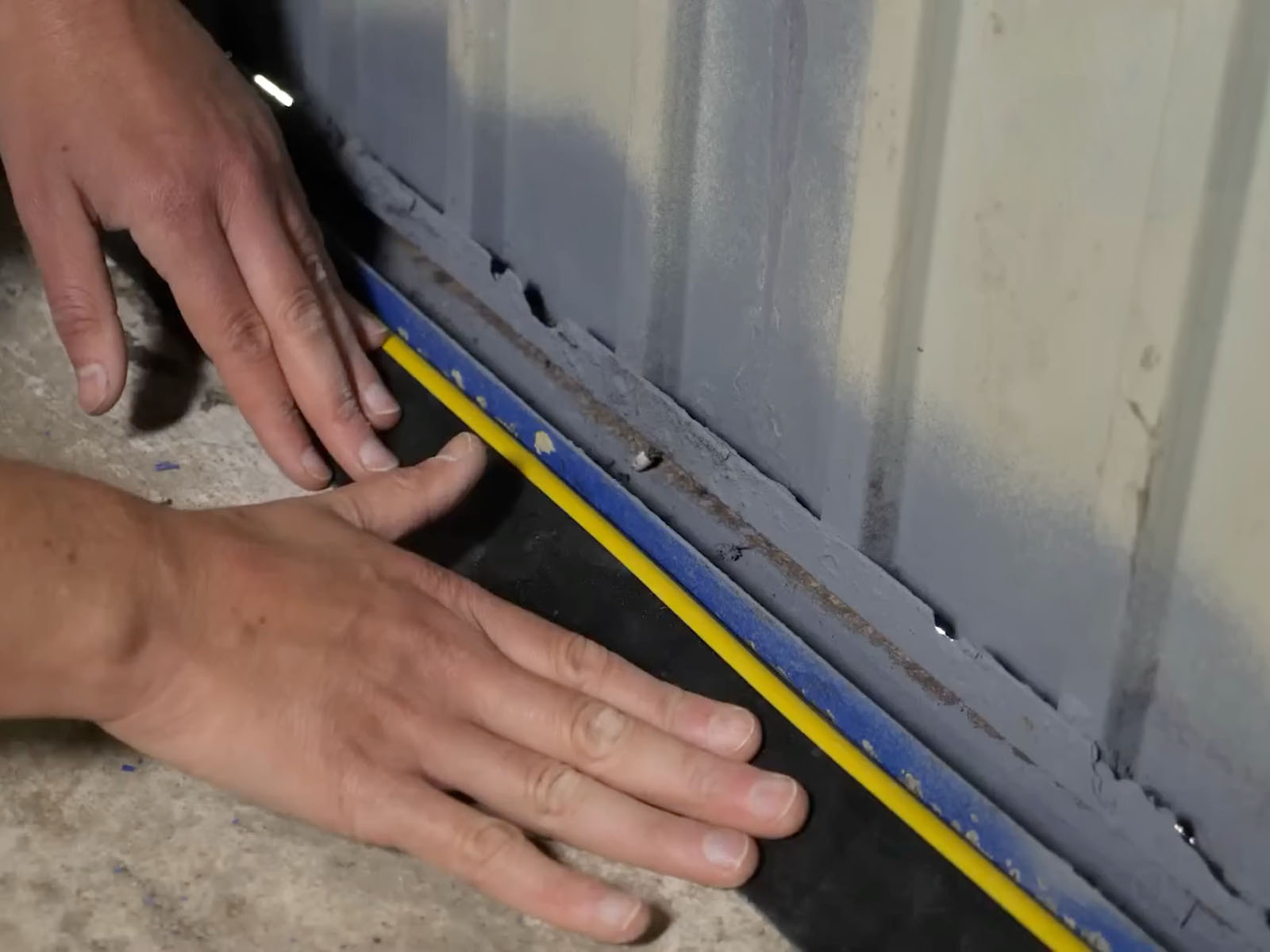

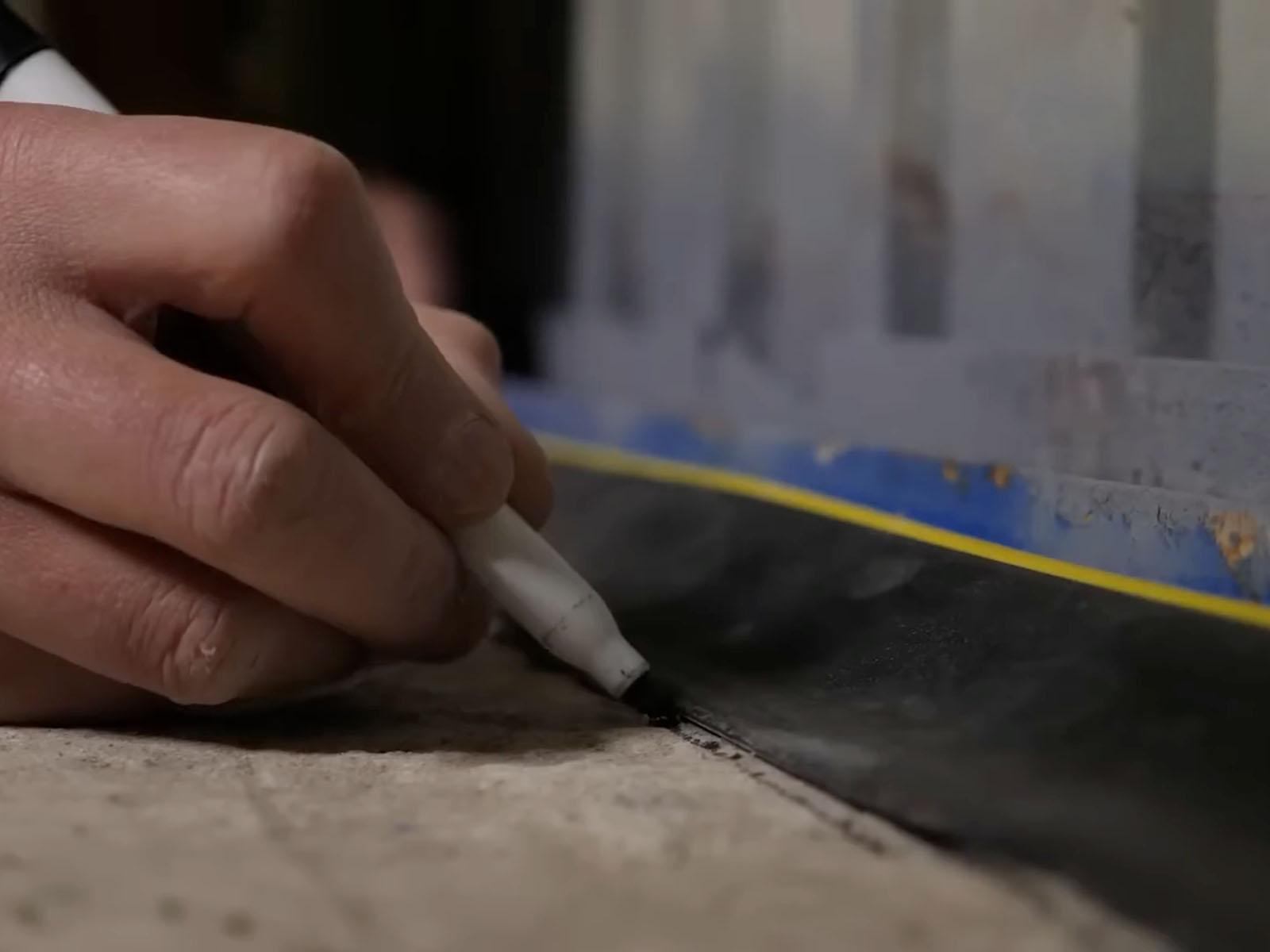

Make Markings For Sealant
Close the door and press the seal up against it. Check the door still latches and locks. When you're happy with the placement of your seal, use a marker pen to outline the seal.
Tip: Create markings 1cm inside the main markings for the sealant
-

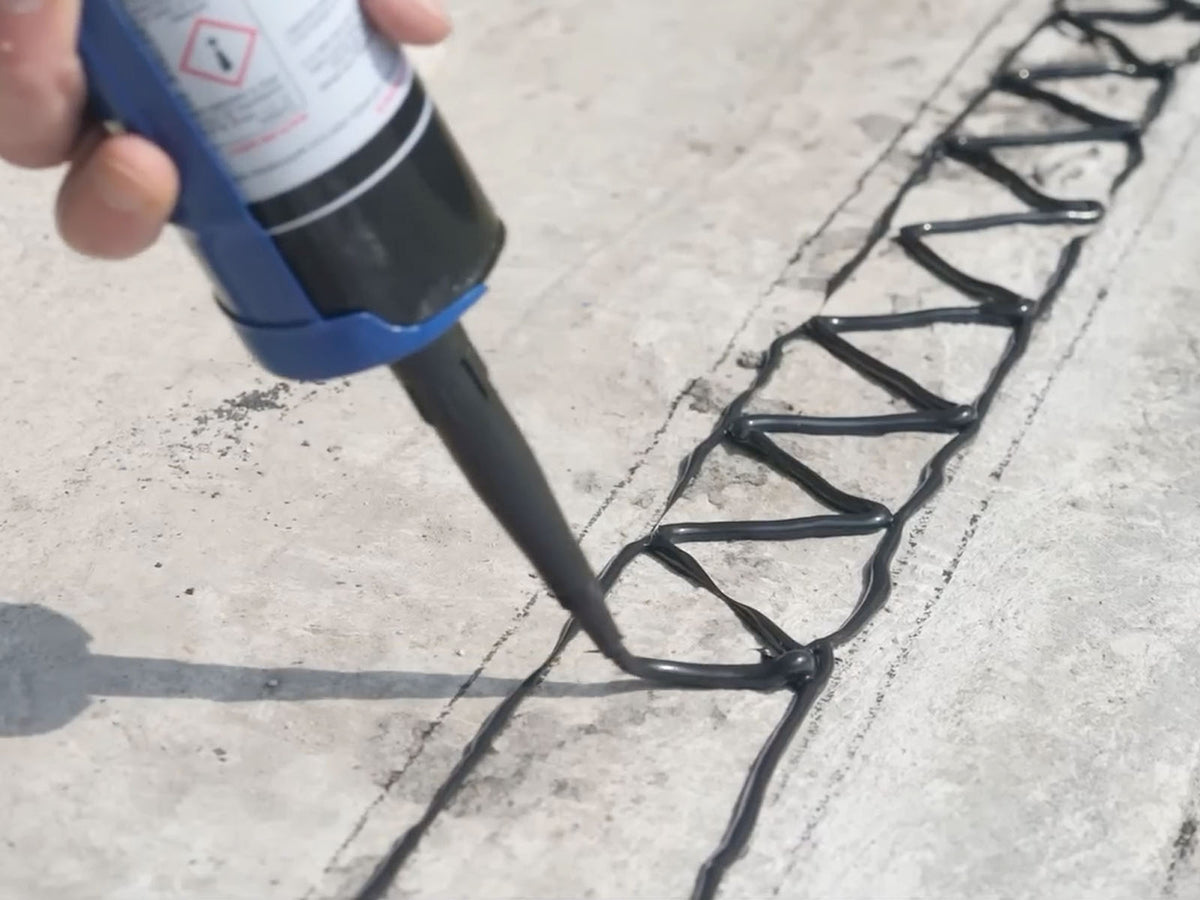

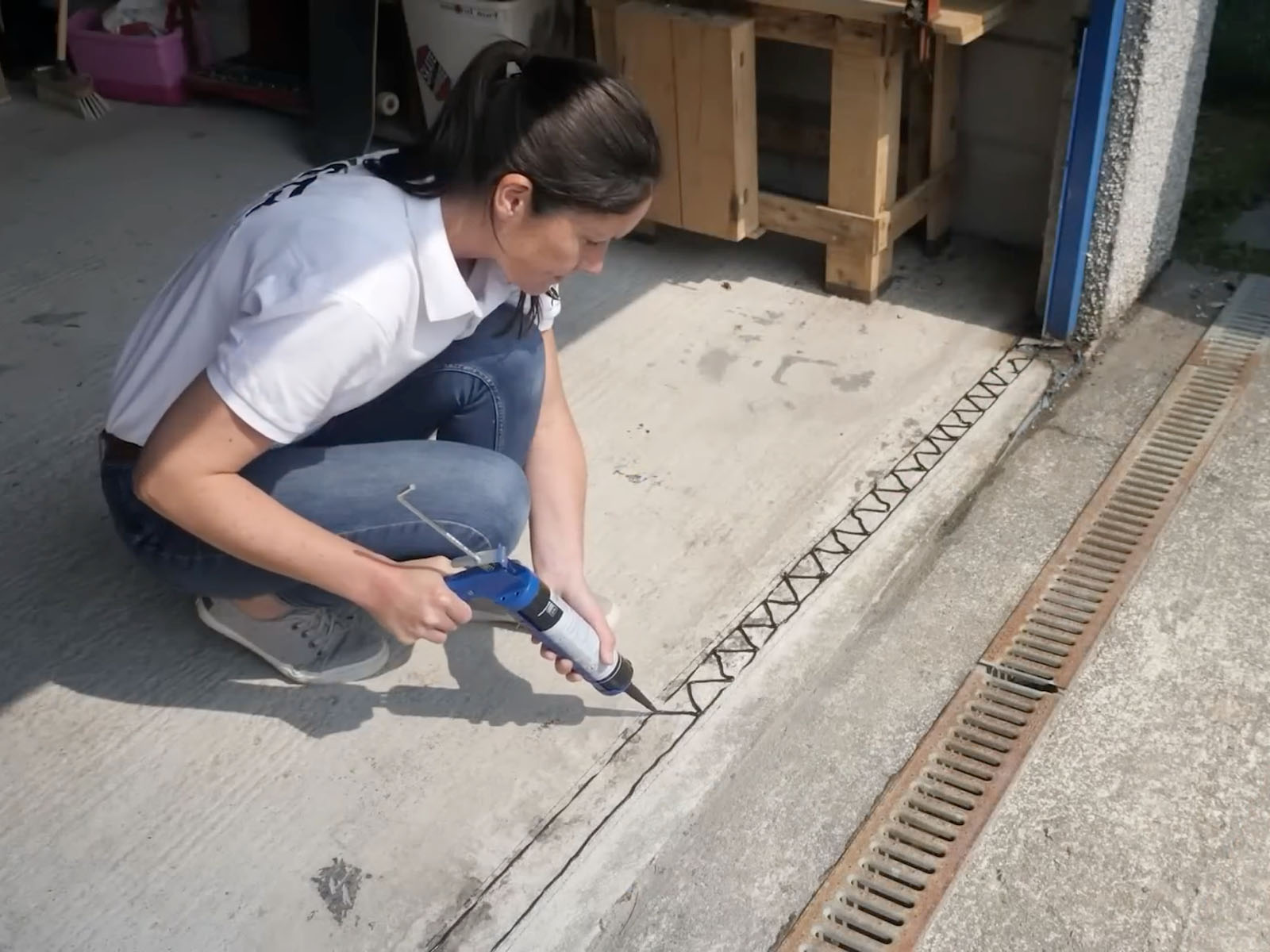

Apply The Adhesive
Apply the adhesive inside the markings 1cm inside the garage door seal. use the additional sealant to create a zig-zag between them.
-

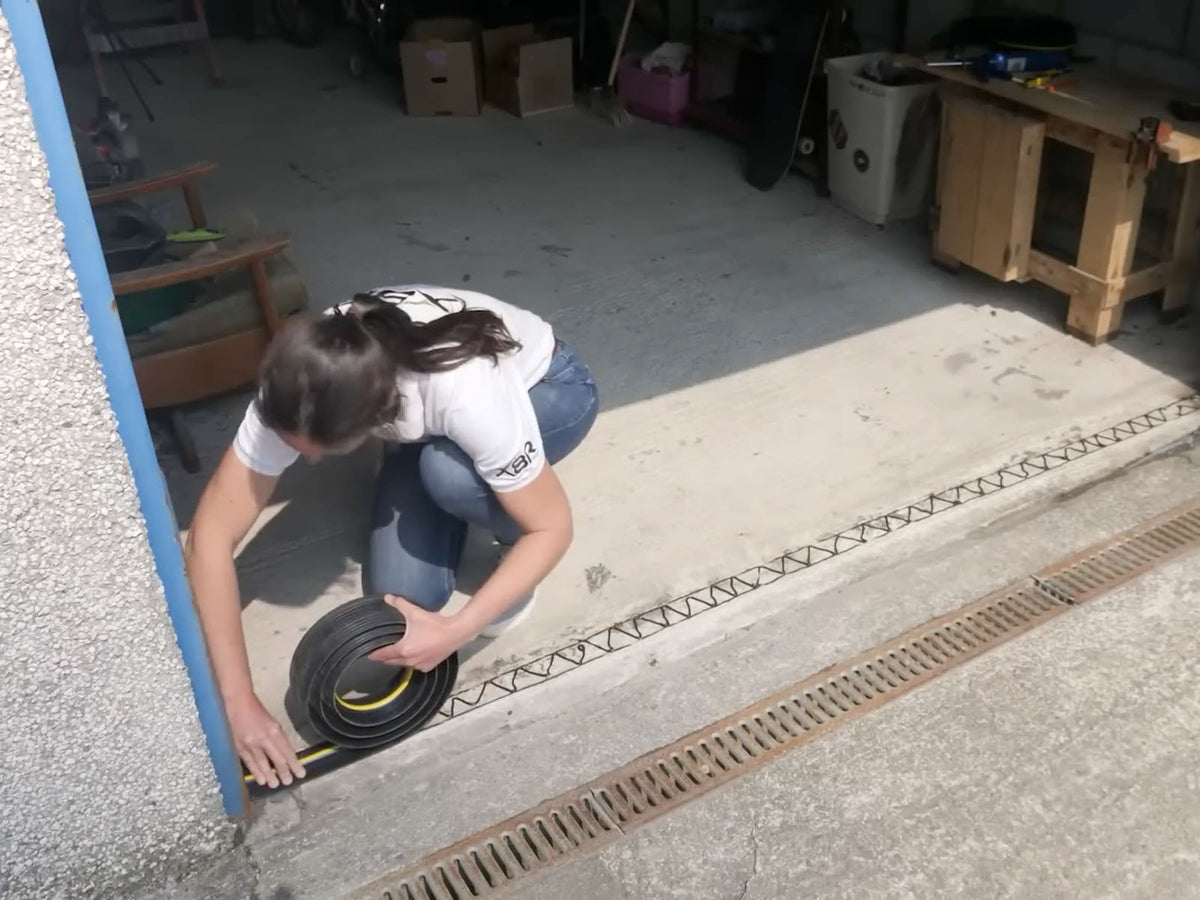

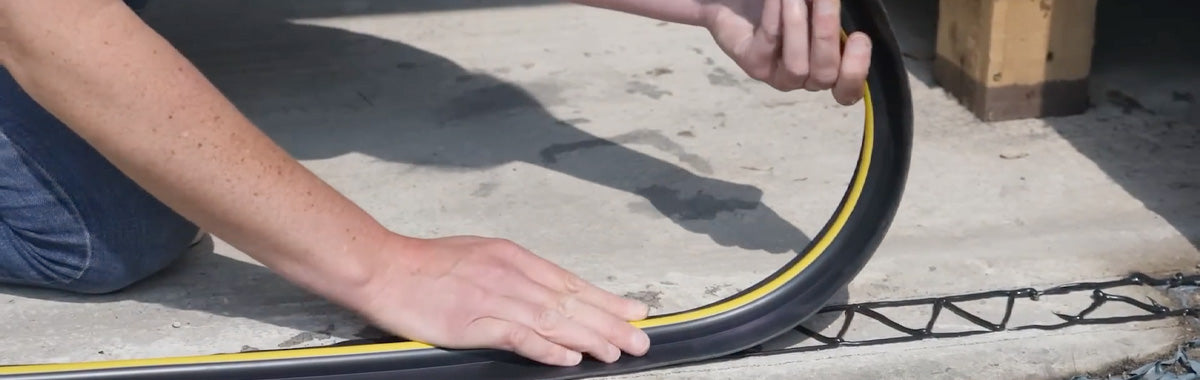

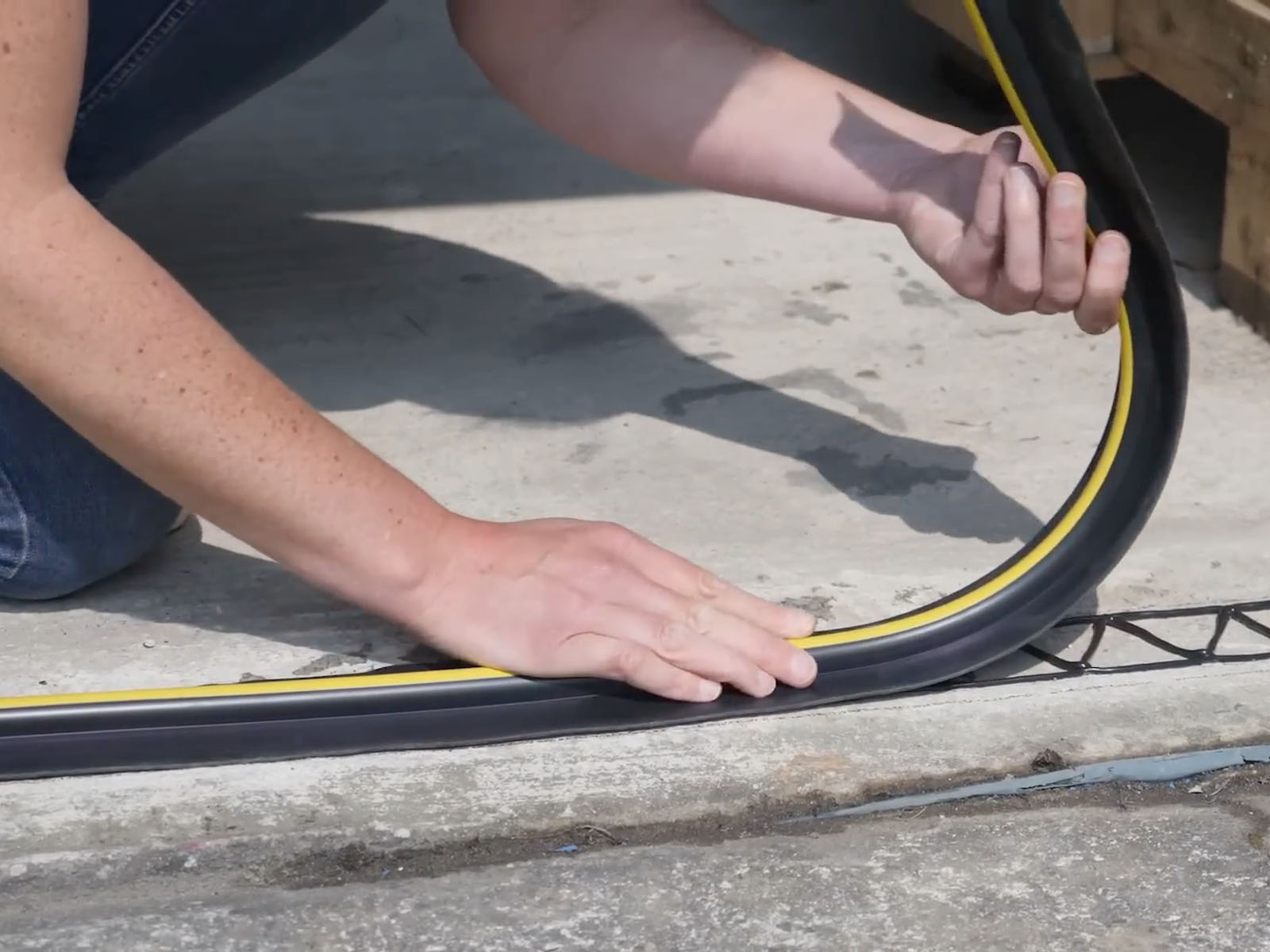

Place & Press Seal Into Place

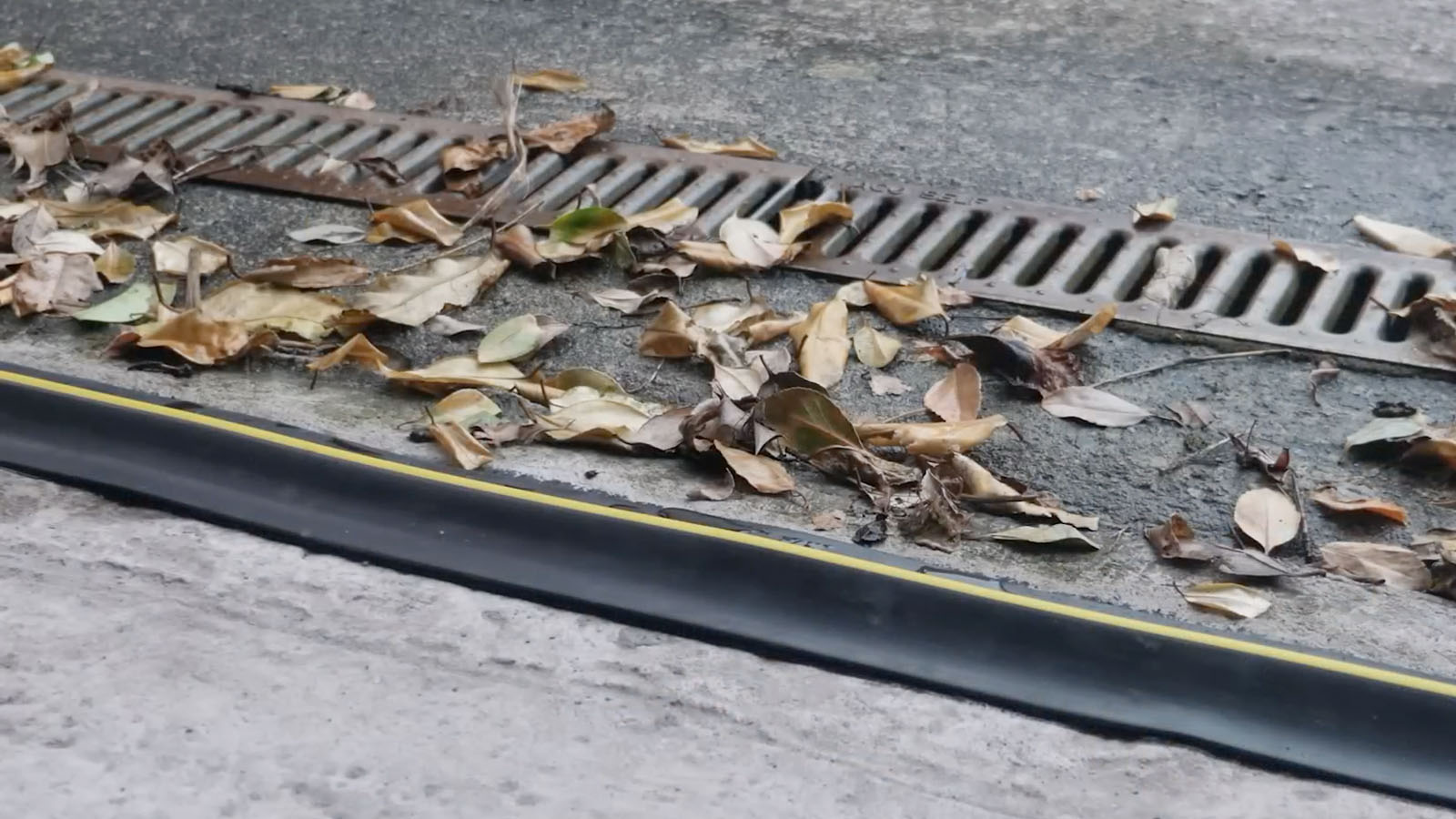

Press the seal down working from one end, cleaning up any sealant squeeze-out as you go. If any edge lifts, weight it down with something heavy while the adhesive cures. Allow 24 hours to cure before driving over the seal.

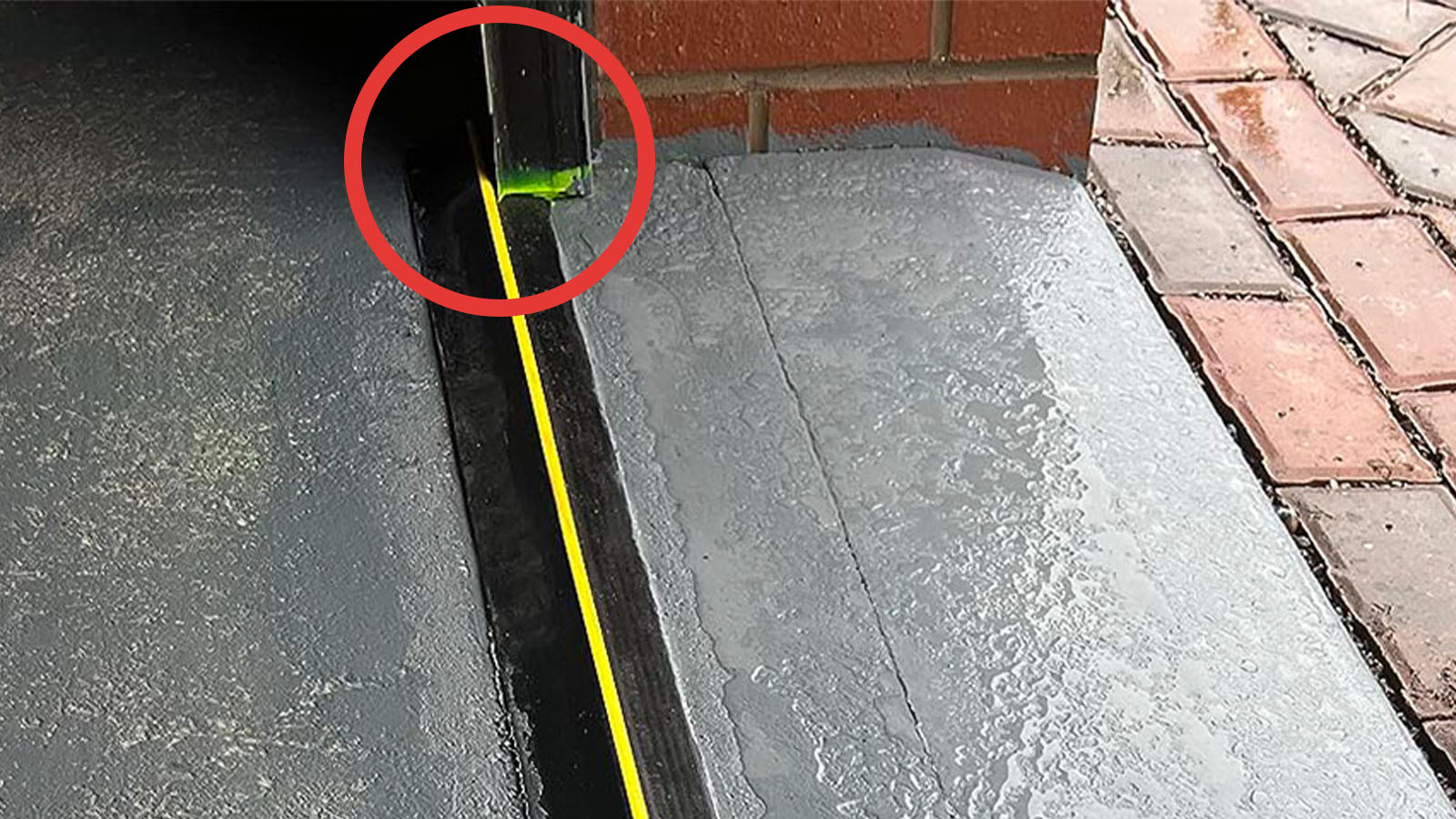

Tip: Run adhesive sealant around the Seal and the door frame to prevent water ingress at the edges.
FAQ
Questions, answered.
Everything you need to know before you order. Can't see your question? Get in touch.
Contact us →What size do I need?
Measure the full width of your garage door opening and round up to the next kit size. Allow about 4cm extra on each side so the seal can be cut in neatly around the door frame. Kits run from 7ft to 30ft.
Will it fit my garage door?
It suits most manual and automatic garage doors, including up and over, sectional, roller shutter and side hinged. Your door simply closes down onto the raised threshold.
Can I drive over it?
Yes. The heavy duty 80mm wide by 18mm high profile is designed for vehicles to drive over. Leave the adhesive 24 hours to cure before you drive over it for the first time.
Is the adhesive included?
Yes, every kit comes with hybrid adhesive and sealant. Kits up to 14ft include 1 tube and kits from 15ft include 2 tubes.
What tools will I need?
A hacksaw to cut the seal to length, a caulking gun for the adhesive and a wire brush to prepare the floor. A junior hacksaw is handy for notching the ends around the door frame.
Where exactly should I fit it?

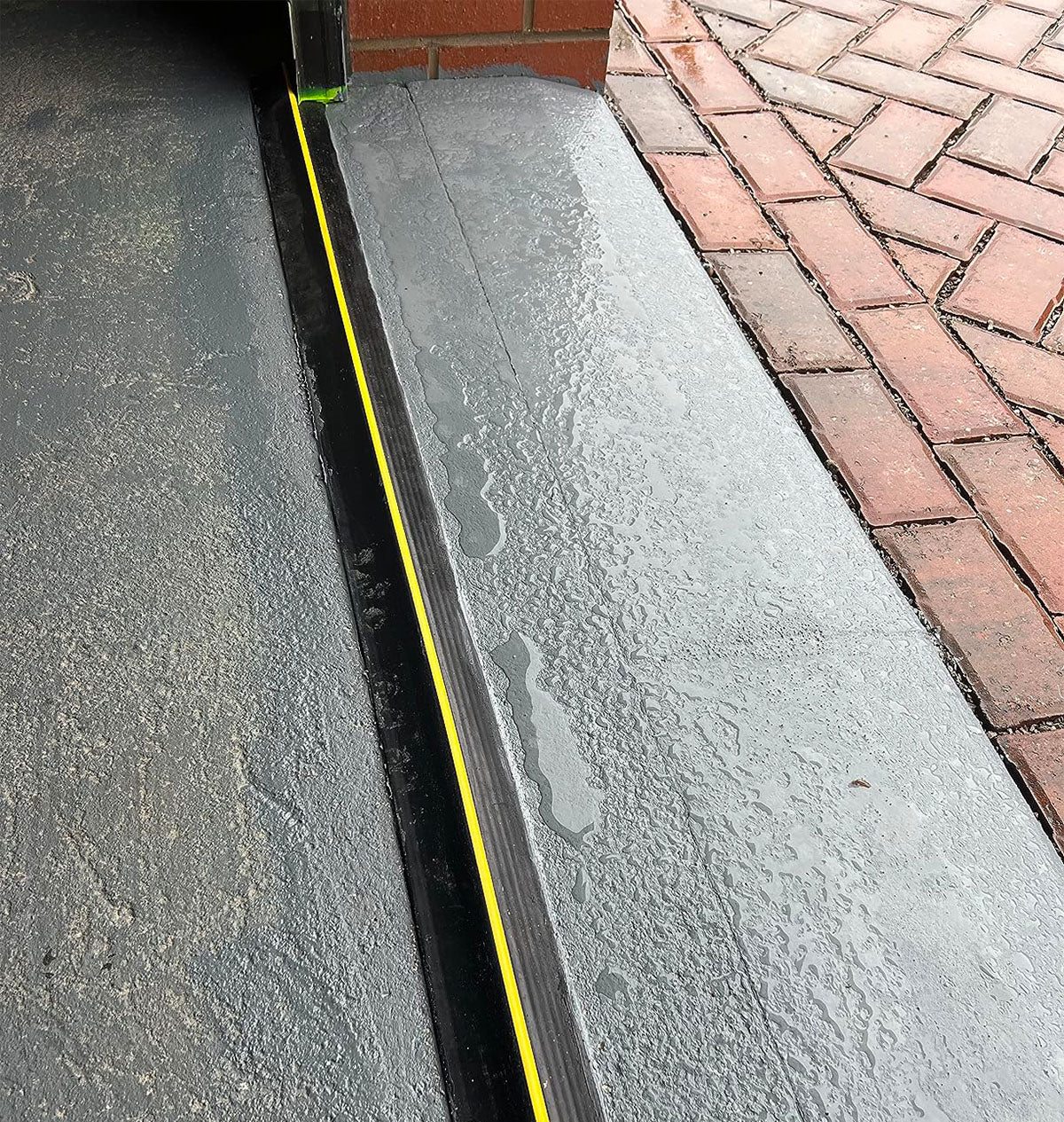

Directly behind or under your closed garage door, so the door rests on the threshold. The floor needs to be clean, dry and free of oil before you bond it down.
Does it work on uneven floors?
Yes. Most garage floors aren't perfectly flat, so the flexible rubber is made to follow the contours of the floor.
Can I fit it in cold weather?
Apply the adhesive when it's between 5°C and 40°C. The seal itself handles −40°C to +100°C, and the adhesive is resistant from −30°C to +95°C once cured.
What does it keep out?
Rainwater, leaves, mud, rodents and cold draughts. Sealing the gap also helps stop heat escaping, so the garage stays more comfortable all year.
When will my order arrive?
Orders placed before 2pm, Monday to Friday, are dispatched the same working day. Free Royal Mail delivery usually takes 2 to 4 working days, or choose Royal Mail Special Delivery (£8.99) for delivery by 1pm the next working day.
Can I return it?
Yes, within 60 days of purchase as long as it's in sellable condition. See our refund policy for the details.
